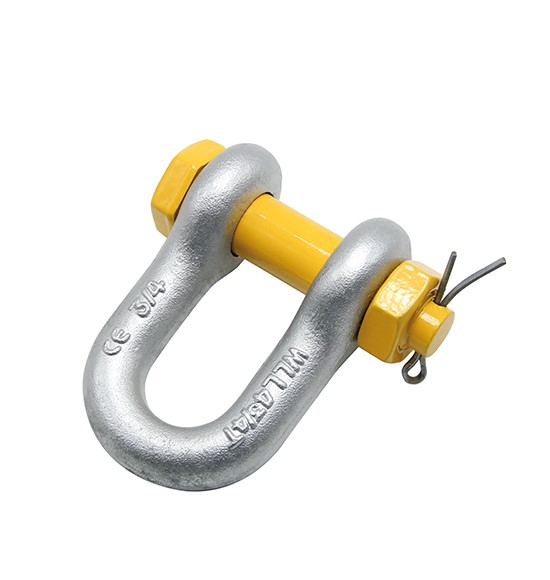

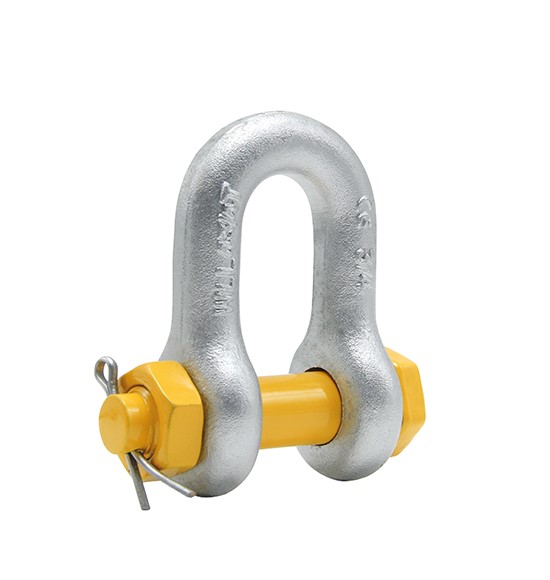

Bolt Pin Chain Shackle US Type

The material:Quality Carbon Steel Body , Alloy Pin

Process:Drop Forged

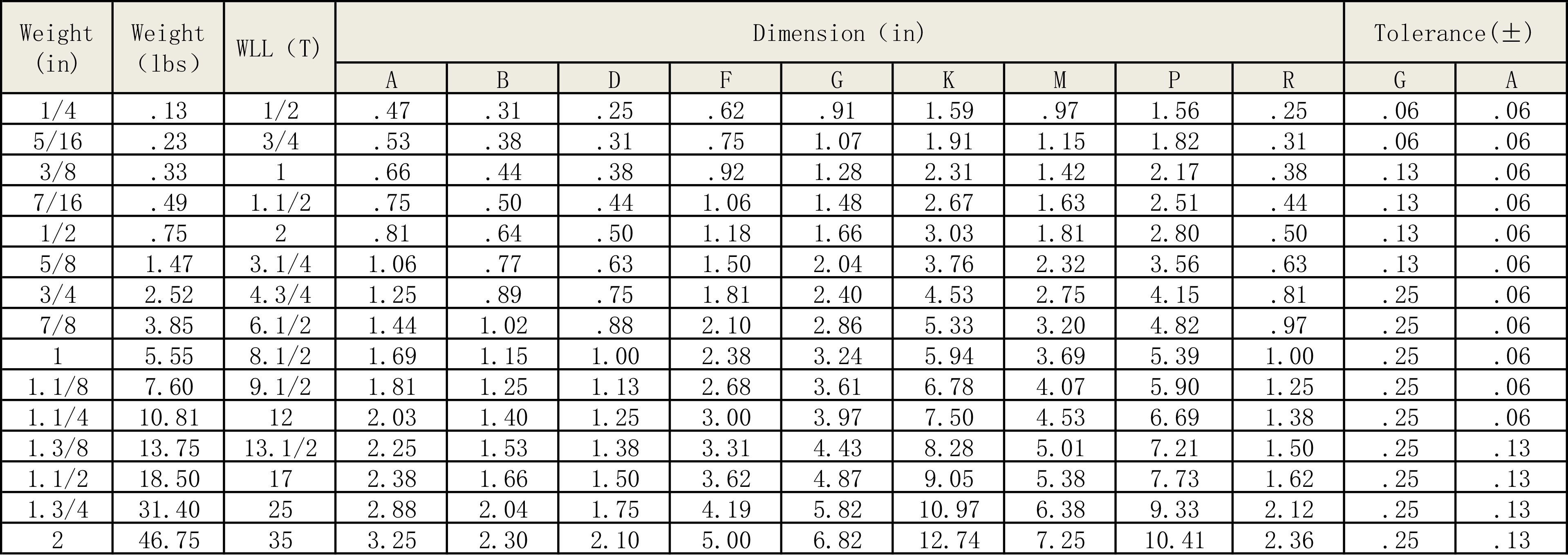

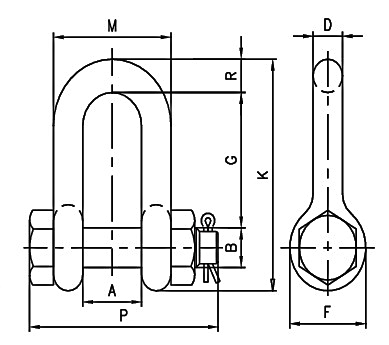

Specifications:1/4"-2"

Product Details

Bolt pin chain shackle US type meets the requirements of federal specification RR-C-271D IVB Grade A Class 3;

Proof load is 2 times of WLL;

Min. break load can be 4\5\6 times of WLL upon request。
